I am unable to keep up with everything new regarding GN, but I am curious, in the 3.0 beta, can GN be finally used to generate/write to UV attributes?
All I want is to for example use world position coordinates to generate UVMap to then use with displace modifier. But this doesn’t work:
I was trying to create a simple, trivial box mapping which almost every software other than Blender has in a non destructive form. In Blender, only way to achieve some sort of box mapping procedurally is to create UV project modifier and create 6 individual helpers for each axis, which is crazy ugly workaround.

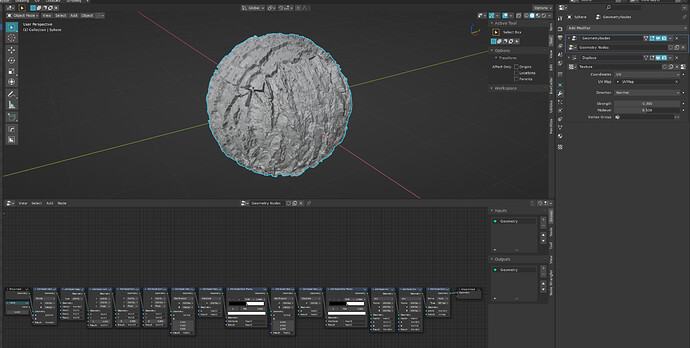

I tried to do it in GN, but I just have no clue how to make workflow even remotely acceptable. I mean I got it working:
But there must certainly be some better way to achieve this than this hideous sequence of attribute vector math nodes where one has to come up with crazy amount of temporary attribute names just to put something as trivial together:
Since you seem to be one of the few people who actually know their way around GN, is there a better way?
All I want is to just create World XY, YZ, and XZ based UV coordinates, and then combine them together using dot product masks.
Edit, this is the same thing done in shader editor:
Right, that’s the idea with this: D11547: Geometry Nodes: New Attribute Processor.
Yes, I know, but afaik it’s still not available in 3.0 beta, and also I am a bit worried that it will still be cumbersome as the processor subnetworks will be quite isolated from the top level networks. I will see how it turns out, but so far I remain skeptical.
This is the cleanest version I have so far:
I wish I could simply write something like position.xy to automatically cast it into a 2D vector attribute, or position.x to have it automatically cast to a float.
Or when creating those world aligned normal mask, I wish I could just directly type something along the lines of Abs(MaskZ) instead of having to cumbersomely create Attribute Vector Math node, set it to Abs, set it’s input to MaskZ, and set it’s output to MaskZ.
And the Attribute Color Ramps nodes are another products of cumbersomeness, where I had to resort to imprecise compression of the range by typing 0.499 and 0.5 in the ramp slider values, because I wanted to avoid even uglier node tree, if I wanted to do things properly, as in Ceil(MaskZ - 0.5f)
Whatever the Attribute Processor will be, I am somewhat worried it won’t make this sort of things that much easier.
Not Geo node related but if you want box mapping in shaders then you just change the Image texture from Flat to Box
Yes, I am aware, but:
I do lots of environments, and surprising amount of procedural environment stuff, such as cliffs, castle walls, etc… can be generated by chaining mesh displaces and remeshes…
But for that, it’s important to be able to procedurally displace mesh, then remesh that result, and then generate UVs on that remeshed result to displace again
I wanted to show you an example, but unfortunately it’s bugged out
to his point, box mapping isn’t UVs- if your goal is to export for a game engine for example, the only ‘non destructive’ method is the UV Project modifier with 6 different empties (7 if you use a root for global transformation, which most people do). it is decidedly not intuitive.
Yep, we have a free addon to streamline that process, there is no other way, but with the addon is a matter of a click, the “bad” part of this is that it does not have “mixture”, I mean, the seam is sharp, but since it’s UV based, it’s logical.

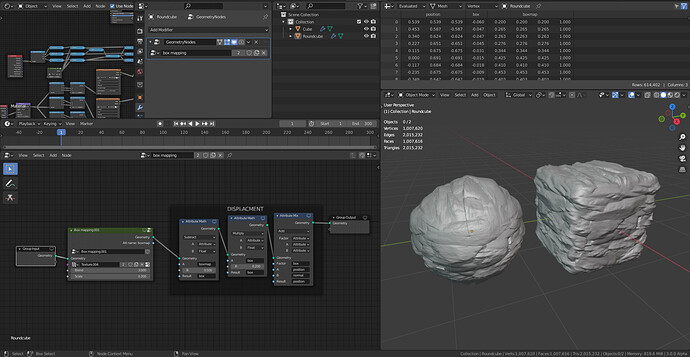

I made a texture box mapping node group, that can do displacement without need of UV maps and has sides blending, it might be useful
It can also be easily modified to add rotation/location controls
Shader node setup that it was based on
It also has sides blending/mixing it might be helpful @JuanGea
Blend file
Hi,
yes, I know. I’ve made pretty much the same thing myself already quite a while ago. Not just box map but actual triplanar map like you, and using the GN mapping instead of UV maps and displace modifier.
I know it can be done, but like you, I also arrived at an incredibly ugly and confusing node tree. What I did above was just exploration of if the workflow can be better with GN in 3.0.
My problem with GN wasn’t whether something can be done, but the speed and efficiency it can be done at. Since you went through the exact same process, I am sure you know how painful was the clunky messing with all the temporary attribute names compared to doing the same thing in the shader editor. And that’s my point
Devs are talking about particle nodes again. So, naturally, the question has to be asked:
Can we do it in geometry nodes?
The answer is: “Well, kind of”. The example here uses some basic particle building blocks to create a bunch of barrels that collide with the ground and then explode after a delay, spawning secondary particles.
blend file:
(Note: You have to run the register_frame_handler.py script to make it work, see explanation below)
Some implementation notes:
GN output state is not carried over from one frame to the next. To make iterative simulations work, we have to somehow store the modifier output. I’ve used a frame handler that copies and applies the modifier to the mesh:
def cache_handler(scene):
override = bpy.context.copy()
override['object'] = sim_obj
bpy.ops.object.modifier_copy(override, modifier=sim_obj.modifiers[0].name)
bpy.ops.object.modifier_move_to_index(override, modifier=sim_obj.modifiers[1].name, index=0)
bpy.ops.object.modifier_apply(override, modifier=sim_obj.modifiers[0].name)
Alembic caches would be another possibility, but they are a bit finicky, and file read/write could have unwanted overhead.
The existing particles are combined with newly spawned particles each frame through a Join Geometry node
Physics is using a standard Leapfrog solver method to integrate positions and velocities, which is quite good at conserving energy
Collision detection is using the Raycast node, with rays between the old and new particle positions
Collision response is also fairly standard, with a restitution and friction component. It only does one iteration atm, so with concave colliders might not be able to fully resolve. Good enough, and the nodes get reaaaally messy already
When a barrel explodes it adds a geometry point to the “Events” output (you might see where i’m trying to go with this).

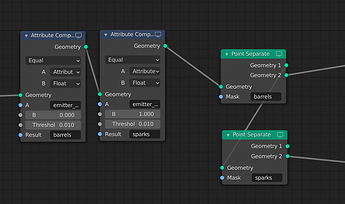

Rendering has to happen in a separate object because all geometry in the sim object is considered to be particles. The ParticleViz object makes instances for points, distinguished by an emitter_index attribute
This was a fun experiment, even though it goes without saying that this way of creating particles is pretty insane and not at all practical. It does highlight some of the areas that need to be addressed though.
This is VERY interesting, and you are using in practice the idea of being able to create a solver inside a node with nodes, that’s magnificient
If we could have that node as an special type of node that can be “compiled” to get C++ performance, that could be awesome, many types of solvers could be created doing this.
The question is, can you assemble all this in a user-friendly way? so any artist can assemble a scene with this “simulator”?
Of course this is a proof of concept and not a fully fledged production ready simulator, but the concept is very cool
Which addon are you talking about?
Here it is, BS Easy BoxUV:
https://school.bone-studio.com/cu_addons_free
It’s under our free section.
After using the join node, the Group data, althought it still exists, cannot seem to get back to the actual vertex group. I think I understand that this is not a bug, it is just the join node makes a new geometry so Group data is no longer a vertext group, but it really doesn’t feel right when using. I am thinking about this, what about having a node similar to the material assign node, but for vertex group? Like a vertex group assign node?
I am thinking about this because it seems assining vertext groups is actually doable:
That’s what I was thinking while reading your post, lol. Cool experiment ! Are you aware that Jacques made a prototype for particle nodes before starting over with geometry nodes, a few months ago ? all the iterative part was solved (!) a while ago already, not to undermine your work of course, and I know you had your own working prototype years ago as well.
It does show that a solver can be made directly with nodes though, which is cool. As long as the user can access previous frame info, anything can be made from there right?
The attribute wrangling in there is pretty insane too, I guess it could be compacted down to a third of that using attribute processors.
I wasn’t aware of Jacques particle nodes, i’ll have to check those out. And yes, this really isn’t meant to be a serious particle implementation. I get a feature, i have to test its limits
If i should make a list of what is missing/nice-to-have for such simulations in GN, in rough order of impact:
Since GN node networks tend to get messy really quickly, it’s now important more than ever to have good node network management tools. This means that this patch: ⚙ D11209 [WIP] Reroute node improvements should not be ignored. It currently has no reviewers assigned for some reason. Given how important the reroute nodes are when it comes to cleaning up node networks, we should be able to move them with the mouse, like any other node in the node editor.
So, according to @dfelinto Geometry Nodes are supposed to be production ready already for scattering use case, but I am still confused about that. I am trying to cover a trivial use case of scattering some branches on game ready tree, and I want to do some modifications to the scattered instances afterwards, mainly do normal transfer from a remeshed hull to create fluffy tree crown shading:
It appears that literally any node I use after the Point Instance node completely destroys the UVs, and not only in given geometry stream but all geometry streams that are joined together at any point.
And a bonus questions:
Thanks in advance.
EDIT: Even doing the workaround of making the data transfer happen outside of the GN results in the same thing
